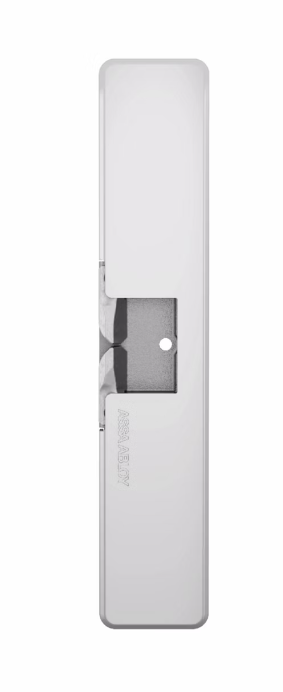

9400 Electric Strike

The 9400 series is a slim-line, surface mounted electric strike designed to accommodate rim exit devices with a 1/2" Pullman latch. All components are completely encased within its 1/2" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt, and install.

The 9400 ships with a 1/8" spacer plate to accommodate varying door gaps. The 9400 exceeds Grade-1 standards for strength and performance. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC. The 9400 features a smooth cover to conceal the mounting screws and provide a sleek surface for superior looks.

Specifications

• UL 1034 burglary-resistant listed and suitable for outdoor use
• ANSI/BHMA, A156.31 Grade 1 (#E09731, #E09732, #E09373)
• RoHS Compliant
• Patent 6,390,520;8,454,063
• Patent Pending

Frame application

• Metal
• Wood

Standard Features

• Installs in metal and wood frames
• Completely surface mounted
• Decorative cover for sleek new look
• Stainless steel construction
• Tamper resistant
• Static strength 1,500 lbs.
• Dynamic strength 70 ft-lbs.
• Endurance 500,000 cycles
• 1/8" spacer plate included
• Field selectable fail safe/fail secure
• Dual voltage 12 or 24 VDC
• Horizontal adjustment
• Non-handed
• Internally mounted solenoid
• Accommodates up to 1/2" Pullman latch
• Five year limited warranty
