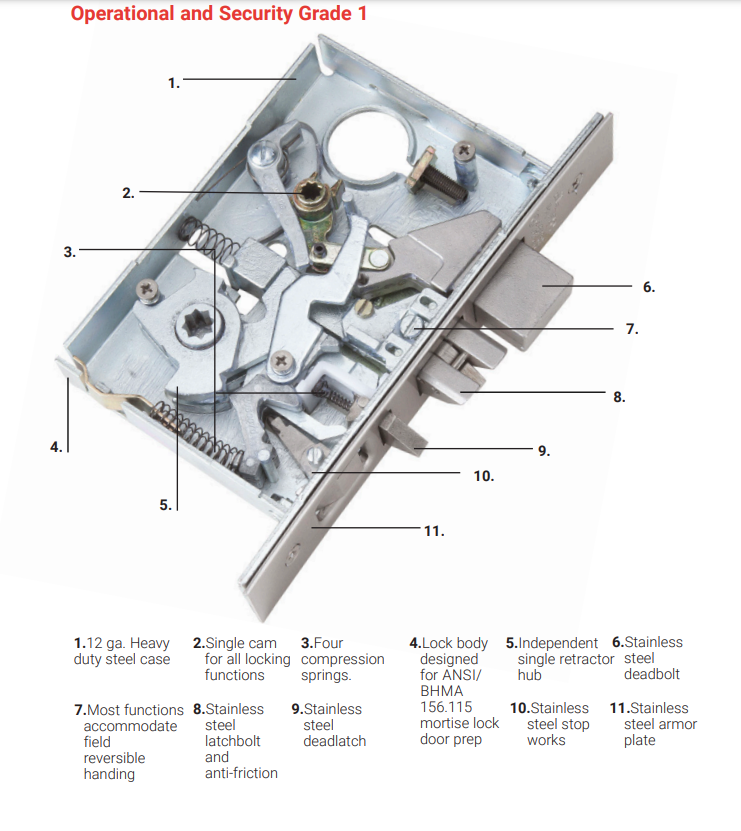

MR EJDJ

• Latchbolt operated by lever from inside
• Key outside retracts latchbolt
• Rigid outside lever
• Auxiliary latch deadlocks latchbolt

FOR DOORS: • 1-3/4” standard, 2” - 3” thick doors available as special order
BACKSET: • 2-3/4”
CASE: • 12-gauge cold rolled steel mechanism • Dichromated for corrosion resistance • Features weakened spindle design to prevent
case damage
ARMOR FRONT: • Beveled 1/8” on 2”
LATCHBOLT: • 3/4” Throw • Investment Cast Stainless Steel • Anti-friction
DEADBOLT: • 1” Throw • Investment Cast Stainless Steel
HAND: • Most functions field reversible. Specify handing for Strikes, consult factory for details
TRIM:• F trim - forged brass levers and escutcheons • Round and square rose available • J Standard and J Wide Trim - stainless steel escutcheon and levers, PHL, MEM, MIA and BSN are solid levers LAX, ORL, DAL
and CHI are tube levers
KEYS: • Two (2) per Lock
KEYWAYS: • SCC standard (Schlage C Compatible) • Also available in keyways of other manufacturers
INTERCHANGEABLE CORE: • 6 or 7-pin • Compatible with Best, Falcon & Arrow • Large Format IC Cores compatible with Schlage.
CYLINDER: • 6 or 7-pin Brass Mortise Cylinder • Standard High Security and UL437 Cylinders Available
• Antimicrobial Coating available on 626 (US26D) & 630 (US32D) for F, J, and J Wide Series.
PERFORMANCE: • Tested to over 11 million cycles, 11X ANSI/BHMA standard
CERTIFICATIONS,
LISTINGS,
COMPLIANCES:
• UL listed for 3 hrs, for single doors up to 4’0” x 8’0”
• Certified to ANSI/BHMA 156.13 Operational Grade 1 and Security Grade 1
• Approved for Florida HVHZ (High Velocity Hurricane Zone). PDQ Product Approval: FL 21376.Design load rating: ± 70.0 PSF
for single door (3’ x 7’)
• Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
• J Wide Escutcheon Trim complies with Unified Facilities Guide Specification 08 71 00 (August 2008)
WARRANTY: • Lifetime Limited Warranty
