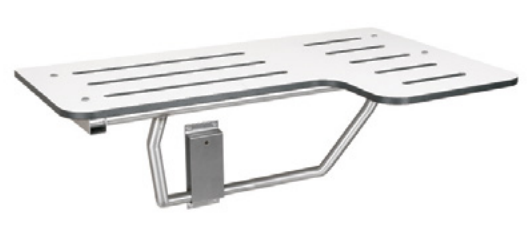

Reversible Phenolic Shower Seat (Non-Stock)

FRAME: satin finish stainless steel; 18 gauge 1" diameter tubing with 1½" HDPE support
bars.
MOUNTING FLANGES: 7 gauge satin finish stainless steel with three mounting holes provided
in each flange for installation.
LOWER SUPPORT BRACKET: 16 gauge satin finish stainless steel.
SEAT: ½" thick solid phenolic. White matte finish Melamine bonded onto the phenolic for color.

All exposed edges are machined smooth to a uniform dark finish. Reversible in field to be right
or left hand.

Operation
Hinged seat folds up and out of the way when not in use. When properly installed, seat can
support up to 250 lbs. – static load.

Installation
Verify all rough-in dimensions prior to installation. Provide concealed backing or anchors as
specified by architect before finished wall is applied. Secure to wall with mounting screws (not
included) at holes provided. Locate mounting holes at appropriate height above finished floor
to meet seat height requirement. Secure lower support bracket to wall at appropriate location.
Seat is reversible, may be made into a right hand seat.

Overall dimensions: 34½"W x 22"D x ½" thick.
