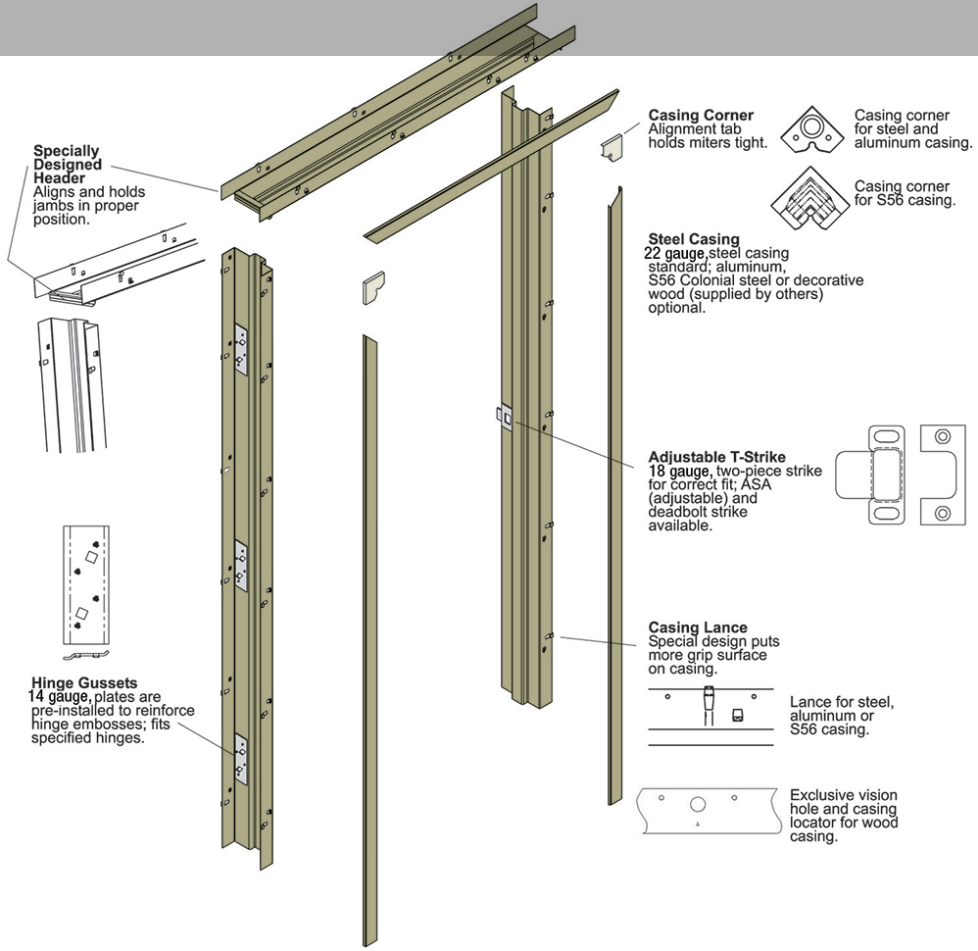

RediFrame® is a prefinished fixed throat steel door frame designed for interior applications where the strength of a steel door frame is desired. Especially suited for new construction and light commercial applications: hotel/motel, modular, assisted living, or residential.
MATERIAL: 20 gauge cold rolled steel
PROFILE: Standard double rabbet
DOOR THICKNESS: 1/-3/4” thickness doors (steel or wood)
WALL SIZE: 4 7/8
STOP HEIGHT: 5/8”
HINGE REINFORCEMENTS: Prepared with three (3)4 1/2standard weight 14 gauge hinge reinforcements
STRIKE PREP: 4 7/8 ANSI Strike
CASING: Standard casing is 22 gauge cold-rolled steel per ASTM A1008M-16
FINISHING: Prefinished RediFrame Brown or White
FIRE RATING: Embossed or Mylar up to 90 minutes neutral and positive pressure fire label; wood or steel stud wall constructions.
*Note* Lead times subject to change for quantities over 5.
